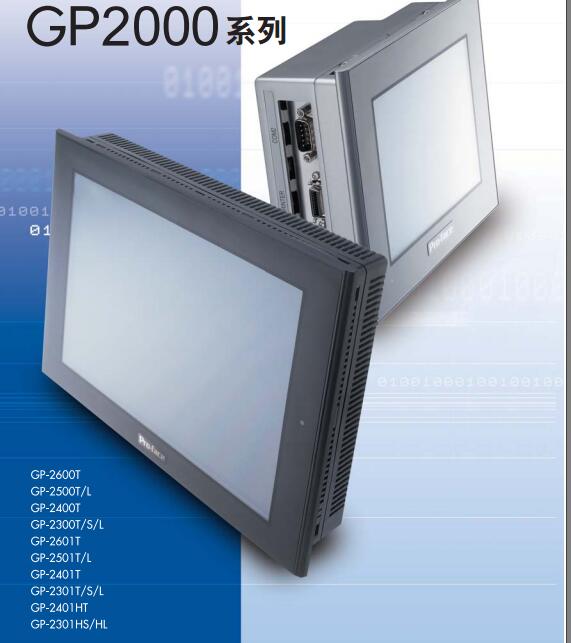

GP2600-TC41-24V(GP-2600T) Touch screen

Display type: TFT color LCD.
Screen size: 7 inch widescreen.
Resolution: 800 x 480 pixels (WVGA).
Effective display area: H85.92mm * W154.08mm.
Display color: 65536 color.
Backlight: LED.
Brightness adjustment: 8 level adjustment can be carried out by touch panel.
Backlight lamp life: 20000 hours or more (in a 25 C environment, continuous work - brightness decreased to 50% of the original) GP2600-TC41-24V(GP-2600T) GP2600-TC41-24V(GP-2600T)
Language: Chinese (simplified).
Character size: 8 x 8 pixels, 8 x 16 pixels, 16 x 16 pixels and 32 x 32 pixels.
Font size: 2, 4,, 8, 1,, 2,,, 1, 8, and 4 times.
Interface: x1 RS-232C, x1 RS-422/485, Type-A x1 USB, Mini-B x1 USB (for the project file upload / download).
Input voltage: DC24V.
Using 65536 color 3D simulation components, you can create a beautiful appearance of the operation of the screen GP2600-TC41-24V(GP-2600T).
Due to the use of a widescreen display, so in a picture can also place a keyboard.
Variety of switches and lights and other basic functions can be used in 65536 colors.Specifications: DC24/S (standard) class models.
Display type: monochrome LCD.
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA) GP2600-TC41-24V(GP-2600T).
Display color: monochrome (16 gray level).
Brightness adjustment: cold cathode lamp (backlight lamp replacement: return to repair).
Touch panel type: resistance type (analog).
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Simulated running status on PC.
Use PC simulation function, do not need to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script.
Providing operation and maintenance instructions through video mode, which can save maintenance cost.
The operation and maintenance instructions provided by the video mode can make any operator easy to master the operation method.
Remote operation and monitoring in the Office
In the office or other remote side can monitor the production site of the GP screen.
Without picture editing or programming, you can achieve real-time management and monitoring, and now, you can also provide more efficient remote maintenance control.
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture.
No need to open the control panel, through the PLC to monitor the GP program.
Through the data through the GP function, you can easily debug the ladder program and adjust the data due to changes in the production line by GP easily.
Use USB memory or CF card backup monthly and daily
Recording function using USB memory or CF card can easily improve the efficiency of daily and monthly.
The use of CSV data conversion function can be modified on the PLC GP settings.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitiive picture, in order to save editing time GP2600-TC41-24V(GP-2600T). Data transmission using USB memory.
In the production site using USB memory can be easily transferred to the production line change and change the screen data.
Error visualizationn GP2600-TC41-24V(GP-2600T).
The controller is directly connected to the GP, and the key error information of the controller can be displayed on the GP by using the sample unit.
