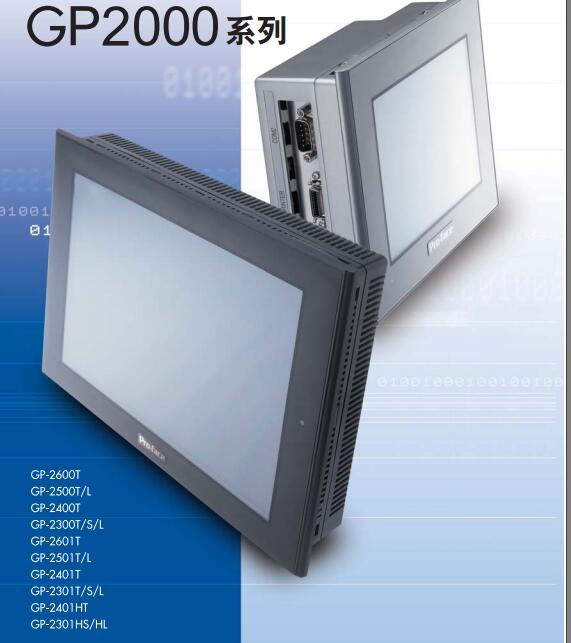

GP2500-TC41-24V(GP-2500T) Touch screen


Proface GP2500-TC41-24V(GP-2500T) Product information and technical parameters:
Brand: Proface
Name: Touch screen
Model: GP2500-TC41-24V(GP-2500T)
"Screen size: 10.4 inches.
Display type: TFT color LCD.
Resolution: 640 x 480 pixels.
Display color: 256 color.
Internal memory: FEPROM 4MB.
Backup memory: SRAM 256KB.
Interface: CF card, Ethernet, serial port expansion, video function (optional).
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
GP2000 advanced technology.
Touch screen operation.
Online multi language switch.
Windows font input.
256 color display.
4 channel video screen display, 1 RGB input, 1 RGB output.
Bar chart, scale chart, pie chart and trend chart.
Active window.
Support the Eurasian font.
Backlight lamp fault detection function.
RISC CPU 100MHz.
JPEG image uptake.
Transmission of JPEG format files through the network.
SRAM data backup.
The use of CF production data exchange.
ADO/DDE/DLL/OPC/SQL instant data collection (Pro-Server).
"" "GP-Web" through the Internet / Intranet for remote monitoring.
The CF card maintenance screen data.
Maintain screen data through ethernet.
Data record.
Formula function.
Alarm message history. "

Output points: 16 point relay (a-connect).
Rated output voltage.
External connection: 10 pin terminal connector.
Public end design: 4 point /1 public end. Specifications: DC24/S (standard) class models.
Display type: TFT color LCD.
Display size: 5.7 inches.
Resolution: 320 x 240 pixels (QVGA).
Display color: 65536 color (no flicker) /16384 color (flashing) GP2500-TC41-24V(GP-2500T).
Brightness adjustment: 8 level adjustment can be carried out by touch panel GP2500-TC41-24V(GP-2500T)
Touch panel type: resistance type (analog).
Remote operation and monitoring in the Office
In the office or other remote side can monitor the production site of the GP screen.
Without picture editing or programming, you can achieve real-time management and monitoring, and now, you can also provide more efficient remote maintenance control GP2500-TC41-24V(GP-2500T).
Can improve the efficiency of the 5 functions.
Using EX GP-Pro can easily create a clear picture and save the creation time.
Screen and logic programming software EX GP-Pro interface is very friendly,
The drag and drop feature makes the software interface easy to operate.
EX GP-Pro powerful features, such as 3D simulation components, image fonts and simulation functions,
Even beginners can easily and quickly grasp how to create a picture GP2500-TC41-24V(GP-2500T).
No need to open the control panel, through the PLC to monitor the GP program.
Through the data through the GP function, you can easily debug the ladder program and adjust the data due to changes in the production line by GP easily.
Use USB memory or CF card backup monthly and daily
Recording function using USB memory or CF card can easily improve the efficiency of daily and monthly.
The use of CSV data conversion function can be modified on the PLC GP settings.
Rich sample images can reduce programming time.
Pro-face provides a large number of sample images and 3D parts,
So you can easily create a beautiful and intuitive picture, in order to save editing time. Data transmission using USB memory.
In the production site using USB memory can be easily transferred to the production line change and change the screen data.
Error visualization.
The controller is directly connected to the GP, and the key error information of the controller can be displayed on the GP by using the sample unit.
Easily upgrade.
GP/ST series supports GP series of all models of the screen data, including the first generation of the GP10 series.
GP product family to maintain the size of the opening of the panel compatibility, to facilitate easy replacement.
Simulated running status on PC.
Use PC simulation function, do not neeed to transfer the picture to GP,
You can check all the functions of GP on the PC - including the screen operation, D script, logical script GP2500-TC41-24V(GP-2500T).
Providing operation and maintenance instructions through video mode, which can ssave maintenance cost GP2500-TC41-24V(GP-2500T).
The operation and maintenance instructions provided by the video mode can make any operator easy to master the operation method.
