Display size: 4.3 inches.
Display color: TFT color LCD.
Resolution: 480 x 272 pixels (WVGA).
Display color number: 65536 color.
Touch screen type: analog.
Storage space: 8MB.
Interface: /485 RS-422.
Rated voltage: DC12-DC24V.
Compact body, powerful and easy to use.
Picture editing software support multi language.
Easy data processing.
Using USB (A Type) interface or Ethernet interface, easy to place the data PFXZCBCBMD1
Meet the development needs of the Internet era of industrial development needs of the data processing functions.
In the era of Internet of things, the demand for information on the spot is also increasing.

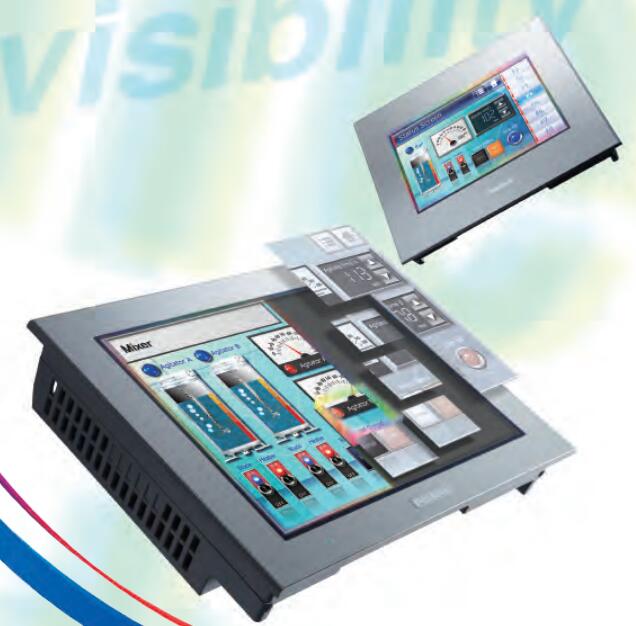

Configuring the GP4100 series of Ethernet and USB interfaces, even if it''s small and compact, allows you to easily access all kinds of information (such as alarms, recipes, and samples).
Improved visualization and operability of small size human computer interface.
Resolution of 480 x 272 pixels, in a limited range of visibility can also clearly show the information.
The 65536 color display effect greatly improves the visualization and avoids the error operation caused by the low quality display of the monochromatic model. 5 / setsCable for transmitting an image signal from an Pro-face host to a Pro-face industrial display or other commercial display device (24- DVI-D pin convex).COM1 interface with the cable (RS-232C), used to connect directly to the SYSMAC connection module (or other host)Used to install the human machine interface to the fixed panel (2 / cover).For 3.8 inch models, connect the connector to the DIO interface. For connecting external I/O devices. (5 / set)Portable design complies with global safety standards.
Screen size: 5.7 inches.
Display type: monochrome (Hei Bai) LCD.
Resolution: 320 x 240 pixels.
Display color: monochrome (8 gray level).
Internal memory: FEPROM 1MB.
Backup memory: SRAM 128KB.
Extended interface: Tool interface, CF card.
Other functions: vibration prompt function, 3 enable switch, emergency stop switch.
Different colors represent different levels of information.
Multiple input items, can be specified in the input sequence function (also can specify the group).
When the individual setting parameters are changed, the notification bit can be set.
Automatically bounce the keyboard position, can be more flexible settings.
In the programmable man-machine interface screen can display the Windows font you need into image data.
Now you can increase the font in the general conversion coefficient of 8, 2, 4 and 1,
And zoom in between 1 and 8.
Move the mouse to the appropriate parts of the image, there will be a description of the operation of the parts,
Help you make the edit screen.
Using Tags can make the picture editing more flexible.
Up to 3 windows can be displayed at the same time (in which 2 Tag U window).
Display history alarm data.
Production site data or data can be collected through the Pro-Server immediately to PC a variety of applications.
Automatic acquisition of production data and can improve the quality and productivity.
Touch panel operation is easier to set.
This allows you to precisely adjust the font size to suit your layout.
Simple arrangement of components and markers to select 1200 of the available styles can be quickly and easily create the screen.
Touch input unit, start input mode.
Increase the number of times, the cumulative time and alarm level message.
Alarm sort function (according to the date, the number of times, etc.).
Increase in the number of clocks, from the previous 3 to 8.
High definition picture resolution function menu for beginners to learn programming design.
The parts list and edit images are in the same window,
So you can use a simple drag and drop action,
Pull the parts into the edit screen to quickly and easily configure the components you need.
PFXZCBCBMD1 Operation manual / Instructions / Catalog download link: /searchDownload.html?Search=PFXZCBCBMD1&select=5
